The scene class. More...

#include <VR3Scene.h>

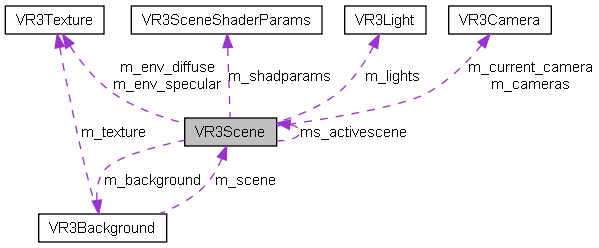

Collaboration diagram for VR3Scene:

Public Member Functions
Constructor and Destructor
	VR3Scene (GLsizei width, GLsizei height, GLfloat fovy, GLfloat znear=VR3SC_DEF_ZNEAR, GLfloat zfar=VR3SC_DEF_ZFAR)
	Scene constructor.
	~VR3Scene ()
	Scene destructor.
Get and Set Scene parameters
void	SetClearColor (GLfloat r, GLfloat g, GLfloat b)
	Sets the background cleaning color.
void	SetClearColor (const GLfloat *color)
	Sets the background cleaning color.
VR3Camera *	GetCurrentCamera ()
	Gets the currently active camera.
void	SetActiveCamera (int id)
	Sets the currently active camera.
void	SetLightPosition (int id, GLfloat x, GLfloat y, GLfloat z)
	Sets the position of a light.
void	SetLightPosition (int id, const GLfloat *v)
	Sets the position of a light.
void	GetLightPosition (int id, GLfloat *p)
	Gets the position of a light.
void	SetLightColor (int id, int color, GLfloat r, GLfloat g, GLfloat b)
	Sets the color of a light component.
void	GetLightColor (int id, int color, GLfloat *c)
	Gets the color of a light component.
GLint	GetActiveLights (bool *fa)
	Gets an array of flags stating which lights are active.
void	SetBackground (const char *file_name, bool fl_skybox=false)
	Loads a background from a file.
VR3Texture *	GetBackground ()
	Gets the current background.
void	EnvironmentMapping (const char diff_file, const char spec_file)
	Enables the Image-Based Lighting mode specifying which cube maps to use.
VR3Texture *	GetEnvMap (GLint map)
	Gets one of the current environment maps as a VR3Texture object.
GLint	GetEnvMappingMode ()
	Gets the current environment mapping mode.
void	SetFrameRate (GLfloat fps)
	Sets the target frame rate.
GLfloat	GetFrameRate ()
	Gets the current frame rate.
GLint	GetNumPolys ()
	Gets the current number of polygons in meshes.
void	AddPolys (GLint polys)
	Add a number to the current polygons counter.
bool	HasBegun ()
	Checks if the scene has begun.
Enable and Disable Scene Components
void	Enable (int feature, int optional_param=0)
	Enables a specific scene feature.
void	Disable (int feature, int optional_param=0)
	Disables a specific scene feature.
bool	IsEnabled (int feature, int optional_param=0)
	Checks if a particular scene feature is active.
bool	CheckVFCulling ()
	Checks whether view frustum culling is enabled or not.
Visualization Functions
void	UpdateDrawRegion (GLsizei w, GLsizei h)
	Updates the current global draw region size.
Scene Properties Discovery Function
const VR3SceneShaderParams *	FetchParameters ()
	Scene properties discovery function.
Static Public Member Functions
static VR3Scene *	GetActiveScene ()
	Gets the current VR3Scene object.
Private Member Functions
	VR3Scene (const VR3Scene &)
	Disable default copy constructor.
VR3Scene &	operator= (const VR3Scene &)
	Disable default assignment operator.
Private Attributes
bool	m_beginendblock
	Flag stating if we are inside a Begin()..End() block.
long	m_time
	Last time value extracted (used for frame rate regulation)
long	m_starttime
	Framerate computation start time (used every 100 frames)
long	m_framecounter
	Frame counter for framerate computation.
int	m_polycounter
	Poligons counter.
VR3SceneShaderParams	m_shadparams
	Shader parameters values.
Scene Properties
VR3Camera	m_cameras [VR3SC_NUM_CAMERAS]
	Available cameras in the scene.
VR3Camera *	m_current_camera
	Currently active camera.
VR3Light	m_lights [VR3SC_NUM_LIGHTS]
	Available lights in the scene.
bool	m_face_culling
	Backface culling enabled flag.
bool	m_vf_culling
	View frustum culling enabled flag.
VR3Background	m_background
	Scene background.
int	m_polygons
	Continuously computed number of polygons.
Image-Based Lighting (Environment Mapping) parameters
Environment Mapping (Image Based Lighting) may be activated or deactivated by the user. When activated, ordinary lights will not be used to shade meshes during rendering but only to compute shadows when needed. Mesh shading will be performed by sampling two distinct environment maps.
GLint	m_env_mode
	Environment mapping mode.
VR3Texture *	m_env_specular
	Specular lighting environment map.
VR3Texture *	m_env_diffuse
	Diffuse lighting environment map (convolution of the above map)
Visualization Properties
GLsizei	m_totdrawregion [2]
	Global viewport size (window size)
GLint	m_minframetime
	Minimum (target) frame time (in milliseconds)
GLfloat	m_framerate
	Continuously computed frame rate.
Static Private Attributes
static VR3Scene *	ms_activescene
	Pointer to the currently active VR3Scene object.
Rendering Begin and End Functions
void	RealBegin (GLsizei width, GLsizei height, VR3Camera *cam, int flags)
	Starts the scene rendering.
void	Begin (VR3Camera *cam=0, int flags=0)
	Starts the scene rendering.
void	BeginAbs (GLint x, GLint y, GLsizei w, GLsizei h, VR3Camera *cam=0, int flags=0)
	Starts the scene rendering, specifying an output absolute screen region.
void	BeginRel (GLfloat x, GLfloat y, GLfloat w, GLfloat h, VR3Camera *cam=0, int flags=0)
	Starts the scene rendering, specifying an output relative screen region.
void	BeginFBO (VR3FBO fbo, VR3Camera cam=0, int flags=0)
	Starts the scene rendering, specifying the VR3FBO where to render the scene.
void	End ()
	Ends the scene rendering.
Shader Parameters Update Functions
void	UpdateLightParams ()
	Updates the scene light uniform parameters to be used by the shaders.
void	UpdateMatrices (GLsizei width, GLsizei height)
	Updates the projection and viewing matrix to be used by the shaders.
void	StoreUniforms (GLsizei width, GLsizei height)
	Sets all uniform parameters consumed by the shaders once.

Detailed Description

The scene class.

This class allows to manage global scene properties and wraps management of cameras and lights in the scene. This class also provides the basic functions to begin and end a rendering section (Begin() to start and End() to finish). All the graphical commands have to be called inside a Begin()...End() block. Typically, just a single instance of the VR3Scene object will be used, representing a single scene where moving objects and lights are represented, a scene object stores informations about scene lights, cameras, background and environment maps. Nevertheless, it is possible to create multiple scene objects to represent different scenes to be used at different times or in different regions of the GL window.

The scene also manages a set of features that may be enabled or disabled by the user, the available features are the following:

Backface culling (enabled by default) If enabled, backfacing polygons will not be rendered when drawing meshes.
View frustum culling (enabled by default) If enabled, this tecnique adds some overhead during rendering on the CPU, but may be very beneficial in case of large and complex scenes where the user can't see all objects at the same time (and extremely beneficial when displacement mapped objects are drawn out of the view frustum). When dealing with displacement mapped objects, also keep in mind that displacements are not considered while checking if the object bounding box is in the view frustum.

Definition at line 92 of file VR3Scene.h.

Constructor & Destructor Documentation

VR3Scene::VR3Scene ( const VR3Scene & ) [private]

Disable default copy constructor.

VR3Scene::VR3Scene	(	GLsizei	width,
		GLsizei	height,
		GLfloat	fovy,
		GLfloat	znear = `VR3SC_DEF_ZNEAR`,
		GLfloat	zfar = `VR3SC_DEF_ZFAR`
	)

Scene constructor.

Builds a new scene object using a global viewport of the specified size and using cameras having the specified fovy and near/far clipping planes.

Parameters:

[in]	width,height	The viewport size in pixel
[in]	fovy	The cameras field of view (y axis)
[in]	znear,zfar	The clipping planes distances

VR3Scene::~VR3Scene ( )

Scene destructor.

It also sets a null active scene if this was the active one.

Member Function Documentation

void VR3Scene::AddPolys ( GLint polys ) [inline]

Add a number to the current polygons counter.

The number of polygons is computed for each Begin()...End() block, considering the objects that are drawn inside it. During object drawing, the VR3Mesh objects will call this function in order to notify the active VR3Scene that some polygons have been drawn.

Parameters:

[in] polys Number of polygons drawn

Definition at line 490 of file VR3Scene.h.

void VR3Scene::Begin	(	VR3Camera *	cam = `0`,
		int	flags = `0`
	)

Starts the scene rendering.

Indicates the beginning of the visual scene description. Once started, the scene must be finalized with the End() function. All the graphical commands which produce a visual output must be inserted inside a Begin()..End() block. It is possible to have several consecutive Begin()..End() blocks. It is also possible to pass a VR3Camera object: its projection and viewing parameters are used throughout the scene and is made the current active camera..

Parameters:

[in] cam A reference to a VR3Camera object (if 0 the current active camera is used instead)

[in]

flags

A combination of one or more flags

VR3BEGFL_KEEPLIGHTS - keep current scene lights uniforms
VR3BEGFL_KEEPMATRICES - keep current view and proj uniforms
VR3BEGFL_KEEPSHADOWMAPS - keep current shadow maps

void VR3Scene::BeginAbs	(	GLint	x,
		GLint	y,
		GLsizei	w,
		GLsizei	h,
		VR3Camera *	cam = `0`,
		int	flags = `0`
	)

Starts the scene rendering, specifying an output absolute screen region.

This function behaves like the Begin() function, but in addition specifies a subregion of the screen, expressed in window coordinates, where the scene is drawn. Combined with other SceneBegin()..SceneEnd() blocks, it allows to realize split-screen or multi-screen applications. It is also possible to pass a VR3Camera object: it's projection and viewing parameters are used throughout the scene and is made the current active camera.

Parameters:

[in]	x,y	The window coordinates of the bottom-left corner
[in]	w,h	The region size along the X and Y axes
[in]	cam	A reference to a VR3Camera object (if 0 the current active camera is used instead)
[in]	flags	A combination of one or more flags VR3BEGFL_KEEPLIGHTS - keep current scene lights uniforms VR3BEGFL_KEEPMATRICES - keep current view and proj uniforms VR3BEGFL_KEEPSHADOWMAPS - keep current shadow maps

void VR3Scene::BeginFBO	(	VR3FBO *	fbo,
		VR3Camera *	cam = `0`,
		int	flags = `0`
	)

Starts the scene rendering, specifying the VR3FBO where to render the scene.

This function behaves like the Begin() function, but activating off-screen rendering on a specified VR3FBO. It is also possible to pass a VR3Camera object: it's projection and viewing parameters are used throughout the scene and is made the current active camera.

Parameters:

[in] fbo The target VR3FBO

[in] cam A reference to a VR3Camera object (if 0 the current active camera is used instead)

[in]

flags

A combination of one or more flags

VR3BEGFL_KEEPLIGHTS - keep current scene lights uniforms
VR3BEGFL_KEEPMATRICES - keep current view and proj uniforms
VR3BEGFL_KEEPSHADOWMAPS - keep current shadow maps

void VR3Scene::BeginRel	(	GLfloat	x,
		GLfloat	y,
		GLfloat	w,
		GLfloat	h,
		VR3Camera *	cam = `0`,
		int	flags = `0`
	)

Starts the scene rendering, specifying an output relative screen region.

This function behaves like the Begin() function, but in addition specifies a subregion of the screen, expressed in normalized window coordinates (ranging in [0.0,1.0]), where the scene is drawn. Combined with other Begin()..End() blocks, it allows to realize split-screen or multi-screen applications. It is also possible to pass a VR3Camera object: it's projection and viewing parameters are used throughout the scene and is made the current active camera.

Parameters:

[in]	x,y	The normalized window coordinates of the bottom-left corner
[in]	w,h	The normalized region size along the X and Y axes
[in]	cam	A reference to a VR3Camera object (if 0 the current active camera is used instead)
[in]	flags	A combination of one or more flags VR3BEGFL_KEEPLIGHTS - keep current scene lights uniforms VR3BEGFL_KEEPMATRICES - keep current view and proj uniforms VR3BEGFL_KEEPSHADOWMAPS - keep current shadow maps

bool VR3Scene::CheckVFCulling ( ) [inline]

Checks whether view frustum culling is enabled or not.

This function is used at rendering time and is not to be called by the user. It simply checks if the view frustum culling feature is enabled.

Returns:: true if view frustum culling is enabled, false otherways

Definition at line 554 of file VR3Scene.h.

void VR3Scene::Disable	(	int	feature,
		int	optional_param = `0`
	)

Disables a specific scene feature.

This function is used to disable a feature of the scene, currently the user may disable the following features specified through the feature parameter:

switch a light off - VR3SC_LIGHT (specify the light id via the second argument)
disable view frustum culling - VR3SC_VF_CULLING
disable backface culling - VR3SC_FACE_CULLING

Parameters:

[in]	feature	The desired feature
[in]	optional_param	An additional argument

void VR3Scene::Enable	(	int	feature,
		int	optional_param = `0`
	)

Enables a specific scene feature.

This function is used to enable a feature of the scene, currently the user may enable the following features specified through the feature parameter:

switch a light on - VR3SC_LIGHT (specify the light id via the second argument)
enable view frustum culling - VR3SC_VF_CULLING
enable backface culling - VR3SC_FACE_CULLING

Parameters:

[in]	feature	The desired feature
[in]	optional_param	An additional argument

void VR3Scene::End ( )

Ends the scene rendering.

Indicates the end of the visual scene description.

void VR3Scene::EnvironmentMapping	(	const char *	diff_file,
		const char *	spec_file
	)

Enables the Image-Based Lighting mode specifying which cube maps to use.

This function is used to enable environment mapping for the current scene. Two cube map files name may be passed to specify the images to use to light the scene. When one of the 2 images assumes the value 0, the corresponding IBL component will be disabled (as if the image was completely black). If both file names are set to 0, environment mapping is disabled and ordinary lights are used again for rendering.

Parameters:

[in]	diff_file	The file containing the cube map to use for the diffuse light component (an HDR image is recommended)
[in]	spec_file	The file containing the cube map to use for the specular light component (an HDR image is recommended)

See also:: VR3TextureManager::LoadCubeMap()

const VR3SceneShaderParams* VR3Scene::FetchParameters ( ) [inline]

Scene properties discovery function.

This function is used during rendering to retrieve the values of some scene properties consumed by the shaders as uniform parameters.

Definition at line 586 of file VR3Scene.h.

GLint VR3Scene::GetActiveLights ( bool * fa )

Gets an array of flags stating which lights are active.

When rendering, the number of active lights may be needed to pass the correct uniform values to the rendering shaders.

Parameters:

[out] fa Flag array stating if some lights are active (true)

Returns:: The number of active lights

static VR3Scene* VR3Scene::GetActiveScene ( ) [inline, static]

Gets the current VR3Scene object.

This static method gets the currently active scene, notice that just one scene may be active at any given time.

Returns:: The active scene

Definition at line 245 of file VR3Scene.h.

VR3Texture* VR3Scene::GetBackground ( ) [inline]

Gets the current background.

This function may be used to get the background of the scene as a VR3Texture object to be used for shader-tuned rendering.

Returns:: The current background VR3Texture object

Definition at line 389 of file VR3Scene.h.

VR3Camera* VR3Scene::GetCurrentCamera ( ) [inline]

Gets the currently active camera.

Retrieves a reference to the currently active camera.

Returns:: The active camera

Definition at line 294 of file VR3Scene.h.

VR3Texture* VR3Scene::GetEnvMap ( GLint map )

Gets one of the current environment maps as a VR3Texture object.

This function may be used to retrieve a reference to the VR3Texture object representing one of the environment maps in the scene (diffuse or specular). When a user has finished with the reference, the VR3Texture::Destroy() function should be called.

Parameters:

[in]

map

The map the user has requested, one of:

Returns:: The requested environment map

GLint VR3Scene::GetEnvMappingMode ( ) [inline]

Gets the current environment mapping mode.

This function is used to get the current environment mapping mode, and is called repeatedly while rendering (inline function for efficiency).

Definition at line 431 of file VR3Scene.h.

GLfloat VR3Scene::GetFrameRate ( ) [inline]

Gets the current frame rate.

The frame rate is computed once every 100 frames and this function can be used to extract the computed value. If multiple Begin()...End() blocks are used in a single frame, to obtain the correct framerate it is necessary to divide the value by the number of Begin()...End() blocks.

Returns:: The computed framerate

Definition at line 457 of file VR3Scene.h.

void VR3Scene::GetLightColor	(	int	id,
		int	color,
		GLfloat *	c
	)

Gets the color of a light component.

Gets the color of a light with regard to a single color shading component (ambient, diffuse, or specular) depending on the color parameter. The color parameter may assume the values:

VR3LIGHT_AMBIENT
VR3LIGHT_DIFFUSE
VR3LIGHT_SPECULAR

Parameters:

[in]	id	The light number
[in]	color	The desired color shading component
[out]	c	The light color as a 4-components vector

void VR3Scene::GetLightPosition	(	int	id,
		GLfloat *	p
	)

Gets the position of a light.

Retrieves the position of a light in world coordinates (non homogeneous, 3-components vector).

Parameters:

[in]	id	The light number
[out]	p	The retrieved position

GLint VR3Scene::GetNumPolys ( ) [inline]

Gets the current number of polygons in meshes.

The number of polygons is computed for each Begin()...End() block, considering the objects that are drawn inside it. If multiple Begin()...End() blocks are used in a single frame, the result will oscillate during a the frame period, depending on what is drawn in the different Begin()...End() block. To obtain the total number of polygons in this case the user will have to add all results obtained after each block. If this function is called inside a Begin()...End() block the result will be the one from the previous block.

NOTE: The retrieved number of polygons only represents the number of polygons in the drawn VR3Objs in each frame. This value will not consider polygons used to render the background or skybox, polygons rendered in the shadow maps, polygons used to blur the shadow maps (4 per shadow map) and polygons used to render VR3Text objects (text strings).

Returns:: The last computed number of polygons

Definition at line 479 of file VR3Scene.h.

bool VR3Scene::HasBegun ( ) [inline]

Checks if the scene has begun.

Checks if the scene has begun (we are inside a Begin()..End() block).

Returns:: true if we are inside a Begin()..End() block, false otherways

Definition at line 497 of file VR3Scene.h.

bool VR3Scene::IsEnabled	(	int	feature,
		int	optional_param = `0`
	)

Checks if a particular scene feature is active.

This function is used to check if a feature of the scene is active, currently the user may check the following features through the feature parameter:

scene light - VR3SC_LIGHT (specify the light id via the second argument)
view frustum culling - VR3SC_VF_CULLING
backface culling - VR3SC_FACE_CULLING

Parameters:

[in]	feature	The desired feature
[in]	optional_param	An additional argument

Returns:: true if the feature is enabled, false otherways

VR3Scene& VR3Scene::operator= ( const VR3Scene & ) [private]

Disable default assignment operator.

void VR3Scene::RealBegin	(	GLsizei	width,
		GLsizei	height,
		VR3Camera *	cam,
		int	flags
	)		`[private]`

Starts the scene rendering.

This function is called by the public rendering begin functions, and is the one effectively taking care of initializing the rendering environment.

Parameters:

[in] width,height The resulting drawing subregion width and height (useful for projection matrix computation)

[in] cam A reference to a VR3Camera object (if 0 the current active camera is used instead)

[in]

flags

A combination of one or more flags

VR3BEGFL_KEEPLIGHTS - keep current scene lights uniforms
VR3BEGFL_KEEPMATRICES - keep current view and proj uniforms
VR3BEGFL_KEEPSHADOWMAPS - keep current shadow maps

void VR3Scene::SetActiveCamera ( int id )

Sets the currently active camera.

Sets the camera having the provided id as the active camera.

Parameters:

[in] id The new active camera

void VR3Scene::SetBackground	(	const char *	file_name,
		bool	fl_skybox = `false`
	)		`[inline]`

Loads a background from a file.

By default, a VR3Scene object has no background. The user may use this function to set a background for the scene. Two types of backgrounds are supported:

background image - A static image
skybox - An all-around background cube map that follows camera movements Passing a filename of 0 disables the scene background (default state).

Parameters:

[in]	file_name	The name of the background image containing file
[in]	fl_skybox	Flag stating if the background is a skybox or a standard 2D texture image

See also:: VR3TextureManager::Load2D(); VR3TextureManager::LoadCubeMap()

Definition at line 380 of file VR3Scene.h.

void VR3Scene::SetClearColor	(	GLfloat	r,
		GLfloat	g,
		GLfloat	b
	)

Sets the background cleaning color.

Specifies the color to use when cleaning the color buffer.

Parameters:

[in] r,g,b Desired color

void VR3Scene::SetClearColor ( const GLfloat * color )

Sets the background cleaning color.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters:

[in] color Desired color vector (3 GLfloats)

void VR3Scene::SetFrameRate ( GLfloat fps )

Sets the target frame rate.

Sets the target frame rate, i.e. the rate which the OnFrame() function is called at. This value determines the frequency of the graphical loop. The frame rate is meant as a target value, therefore it strongly depends on the used hardware and on the current software status. Impossible (<=0) or absurd (>200) requests will be ignored. If multiple Begin()...End() blocks are used in a single frame, we strongly discourage the usage of this function as the resulting framerate would result lower than the desired one.

Parameters:

[in] fps The desired frame rate

void VR3Scene::SetLightColor	(	int	id,
		int	color,
		GLfloat	r,
		GLfloat	g,
		GLfloat	b
	)

Sets the color of a light component.

Sets the color of a light with regard to a single color shading component (ambient, diffuse, or specular) depending on the color parameter. The color parameter may assume the values:

VR3LIGHT_AMBIENT
VR3LIGHT_DIFFUSE
VR3LIGHT_SPECULAR

Parameters:

[in]	id	The light number
[in]	color	The desired color shading component
[in]	r,g,b	The desired color

void VR3Scene::SetLightPosition	(	int	id,
		GLfloat	x,
		GLfloat	y,
		GLfloat	z
	)

Sets the position of a light.

Sets the position of a specified light using world space coordinates.

Parameters:

[in]	id	The light number
[in]	x,y,z	The desired position

void VR3Scene::SetLightPosition	(	int	id,
		const GLfloat *	v
	)

Sets the position of a light.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters:

[in]	id	The light number
[in]	v	The desired position

void VR3Scene::StoreUniforms	(	GLsizei	width,
		GLsizei	height
	)

Sets all uniform parameters consumed by the shaders once.

This function may be used to set once the scene uniform parameters consumed by shaders while rendering. It sets both the matrices parameters (depending on the camera and on the viewport dimensions) and the light parameters. Usually this function must not be used, it may be helpful if an application performs rendering using Begin()...End() where a particular type of uniform parameters set is never updated (using one of the VR3BEGFL_* flags).

Parameters:

[in] width,height viewport dimensions used to compute the projection matrix

void VR3Scene::UpdateDrawRegion	(	GLsizei	w,
		GLsizei	h
	)

Updates the current global draw region size.

This function is used to refresh the OpenGL drawing area depending on the provided parameters, it modifies the region of the screen where the view frustum may be projected. The region may be separated in different subregions depending on the effect we want to obtain and should always match the OpenGL window area.

Parameters:

[in] w,h The drawing region size

void VR3Scene::UpdateLightParams ( ) [private]

Updates the scene light uniform parameters to be used by the shaders.

This function is used to compute part of the shader parameters consumed by the shaders as uniforms during rendering. We prepare the properties of the currently active scene lights to be used by the shaders.

void VR3Scene::UpdateMatrices	(	GLsizei	width,
		GLsizei	height
	)		`[private]`

Updates the projection and viewing matrix to be used by the shaders.

This function is used to compute part of the shader parameters consumed by the shaders as uniforms during rendering. We compute the projection matrix and update the viewing matrix depending on the active camera, width and height of the current viewport subarea. This function is called once for each Begin() to prepare the matrices for rendering.

Parameters:

[in] width,height width and height of the current viewport subarea

Member Data Documentation

VR3Background VR3Scene::m_background [private]

Scene background.

Definition at line 123 of file VR3Scene.h.

bool VR3Scene::m_beginendblock [private]

Flag stating if we are inside a Begin()..End() block.

Definition at line 98 of file VR3Scene.h.

VR3Camera VR3Scene::m_cameras[VR3SC_NUM_CAMERAS] [private]

Available cameras in the scene.

Definition at line 112 of file VR3Scene.h.

VR3Camera* VR3Scene::m_current_camera [private]

Currently active camera.

Definition at line 114 of file VR3Scene.h.

VR3Texture* VR3Scene::m_env_diffuse [private]

Diffuse lighting environment map (convolution of the above map)

Definition at line 150 of file VR3Scene.h.

GLint VR3Scene::m_env_mode [private]

Environment mapping mode.

VR3EM_NONE - Environment mapping disabled
- VR3EM_DIFFUSE - Environment mapping performed only with diffuse component
- VR3EM_SPECULAR - Environment mapping performed only with specular component
- VR3EM_FULL - Full environemnt mapping (recommended when using IBL) This variable is stored separately from the effective maps to be recovered very quickly while rendering.

Definition at line 146 of file VR3Scene.h.

VR3Texture* VR3Scene::m_env_specular [private]

Specular lighting environment map.

Definition at line 148 of file VR3Scene.h.

bool VR3Scene::m_face_culling [private]

Backface culling enabled flag.

Backface culling is directly supported by the GL.

Definition at line 119 of file VR3Scene.h.

long VR3Scene::m_framecounter [private]

Frame counter for framerate computation.

Definition at line 104 of file VR3Scene.h.

GLfloat VR3Scene::m_framerate [private]
