The background class. More...

#include <VR3Background.h>

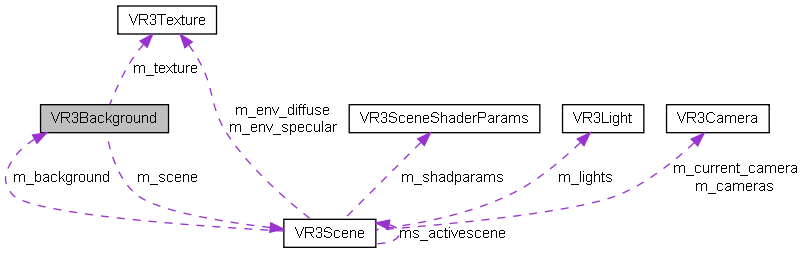

Collaboration diagram for VR3Background:

Public Member Functions
Constructor and Destructor
	VR3Background (VR3Scene *scene)
	Constructor of the class.
	~VR3Background ()
	Destructor of the class.
Background Set and Get Functions
void	SetBackground (const char *file_name, bool fl_skybox)
	Sets the current background.
VR3Texture *	GetBackground ()
	Gets the current background.
Draw Method
void	Draw ()
	Draw method.
Private Member Functions
	VR3Background (const VR3Background &)
	Disable default copy constructor.
VR3Background &	operator= (const VR3Background &)
	Disable default assignment operator.
VAO and VBOs Preparation Function
void	PrepareVAO ()
	Prepares the VAO for the background.
Private Attributes
bool	m_fl_skybox
	Flag stating if the background object is a skybox.
VR3Texture *	m_texture
	Texture used to build the background image or skybox.
GLuint	m_shader_program
	Shader program to be used to render the background.
const GLint *	m_unilocs
	Pointer to the uniform location array defined for the program.
VR3Scene *	m_scene
	The scene object containing this background object.
GLuint	m_VAO
	VAO associated with the background.
GLuint	m_VBO
	Mesh VBO associated with the above VAO (vertex attributes)

Detailed Description

The background class.

This class represents the background for a given scene, the only entity that owns instances of this class is the VR3Scene class. The user should not have direct access to this class. A background object may either be a simple image drawn on a background plane, or a skybox drawn on a background cube that responds to the camera movements.

Definition at line 34 of file VR3Background.h.

Constructor & Destructor Documentation

VR3Background::VR3Background ( const VR3Background & ) [private]

Disable default copy constructor.

VR3Background::VR3Background ( VR3Scene * scene )

Constructor of the class.

A new VR3Background object is created with a null texture image, in this state the background is disabled. The constructor takes as argument the scene object that holds this background object (enabling fast callbacks).

Parameters:

[in] scene The scene object containing this background object

VR3Background::~VR3Background ( )

Destructor of the class.

Deletes a VR3Background object. The VR3TextureManager is used to avoid deletion of VR3Texture objects or VR3CubeMap objects that are being used by some other entities.

Member Function Documentation

void VR3Background::Draw ( )

Draw method.

This function is used to draw the background and is directly called when a scene Begin() function is called. The drawing occours differently if the background is a simple 2D image or a cube map.

VR3Texture* VR3Background::GetBackground ( )

Gets the current background.

The currently active background is returned as a VR3Texture object. The user obtains a new reference to a texture object and the VR3TextureManager is notified accordingly. The user will have to destroy() the obtained object when done.

Returns:: The current background VR3Texture object

VR3Background& VR3Background::operator= ( const VR3Background & ) [private]

Disable default assignment operator.

void VR3Background::PrepareVAO ( ) [private]

Prepares the VAO for the background.

The VAO to be used to draw the background will always have the vertex positions and the background texture coordinates (eventually cube map coordinates). This function is used to prepare the VAO with the two required VBOs and send the data to the GL.

void VR3Background::SetBackground	(	const char *	file_name,
		bool	fl_skybox
	)

Sets the current background.

A new background image or skybox can be specified by using this function, a new VR3Texture object is generated or received from the VR3TextureManager that represents the background image or cube map. A flag is used to specify if a cubemap must be built or a standard texture. The VR3TextureManager static module is used to avoid loading the file if it was already loaded. If the file_name parameter is set to 0, the VR3Background state is resetted to the initial one (no background).

Parameters:
